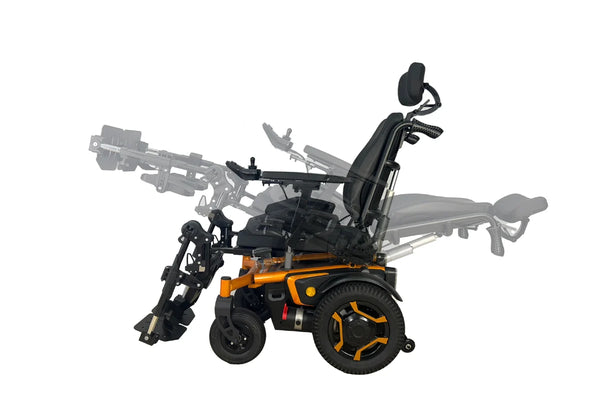

IKON - STAR TILT POWERCHAIR

STAR TILT POWERCHAIR

A comfortable, capable powerchair with power tilt (0°–25°) and recline (90°–140°), adjustable seat width, footrests, armrests and headrest. Twin 340W motors give a 10km/h top speed and 30km range, with 14" pneumatic rear wheels, rear suspension and a 900mm turning radius for indoor and outdoor use. Crash tested to ISO 7176:19. Supports users up to 136kg.

CLICK HERE FOR PDF

FEATURES
- Ergonomic seat design to ensure maximum
 comfort
- Pan seat arrangement for various seating systems
- Advanced technology provides the user with both
 independance and safety
- Adjustable width seat & backrest
- Recline function
- Power tilt seating
- High ground clearance with 14” drive wheel
- Certified safety belt
- Adjustable footrests, armrests and headrest
- Switch between driving/seat tilt mode easily
- Front & rear lights
- Rear suspension
- Anti-tip wheels
- Drive & freewheel mode
- Elevating swing away legrests
- Fold up footplates
- Flat free front wheels, large pneumatic rear tyres

SPECIFICATIONS

Overall Length: 1080mm
Overall Width: 580mm
Overall Height: 1215mm
Overall (L) with legrest: 1155 - 1820mm
Backrest angle range: 90°- 140°
Backrest height: 520mm
Backrest width: 430 - 480mm
Footrest to seat: 450 - 575mm
Leg to seat angle: 110°
Floor to seat pan: 453mm
Floor to std. seat cushion: 510mm
Armrest to seat distance: 170 - 290mm
Motor: 2 x 340 W
Battery: 2 x 12V52A
Battery charger: 6 Amp
Rear wheels diameter: 14 x 3 “
Front wheels diameter: 9 x 3 “
Max. user weight: 136kg
Product weight: 106.5kg
Battery weight: 26kg
Max. speed: 10km/h
Obstacle clearance: 50mm
Safe climbing angle: 10°
Turning Radius: 900mm
Range: 30km
