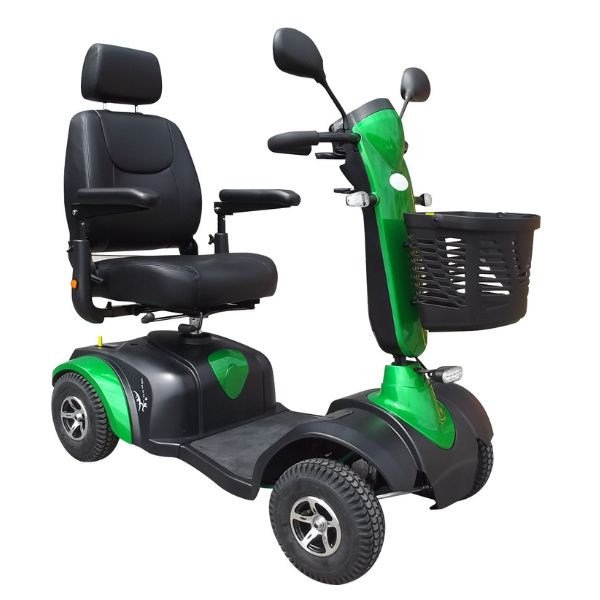

Merits Eco 745 Scooter

Stylish, eye-catching design with an attractive and modern colour range.

Merits Eco 745 Mobility scooter is designed with loop handlebars offer comfortable throttle operation. Adjustable, high-back contoured seat with simple operation of slide and swivel mechanisms to allow maximum user comfort. Infinite adjustment of the steering tiller means anyone can easily find a comfortable position. High mount charger socket, allowing for easy access when charging. Removable front basket with carrying handle. Adjustable power-saving LED headlight, indicators front and rear, rear taillights, and reverse warning. The built-in speed reduction switch operates automatically when turning to provide exceptional safety.

Features:

• Stylish eye-catching design with an attractive modern colour range
• Loop handlebars offer comfortable finger or thumb throttle operation
• Adjustable high back contoured seat with simple operation of slide and swivel mechanisms to allow maximum user comfort
• Infinite adjustment of steering tiller allowing everyone to easily find a comfortable position
• A high mount charger socket means easy access when charging
• Removable front basket with carrying handle
• Adjustable power-saving LED headlight, indicators front and rear, rear tail lights and reverse warning
• Half-speed switch fitted

Specifications:

• Maximum User Weight 136kg
• Overall Dimension 120cmL x 61cmW x 99cmD
• Seat Dimension: 46cmW x 40cmD x 46cmH
• Seat Height from Ground: 53cm-58cm
• Seat Height from Deck: 40-47cm
• Wheel Base: 85cm
• Max Speed 10kph/6.25mph
• Range 20-30km/13-20mi
• Turn Radius 157cm/62"
• Ground clearance 9.5cm/3.74"
• Motor DC 24V, 210W (Rating)/ 715W (Max)
• Controller S-Drive 70A
• Battery 12V/34A/H x 2pcs
• Charger 5A off-board
• Gradient 6°
• Front Wheel 10" Pneumatic tire
• Rear Wheel 10" Pneumatic tire
